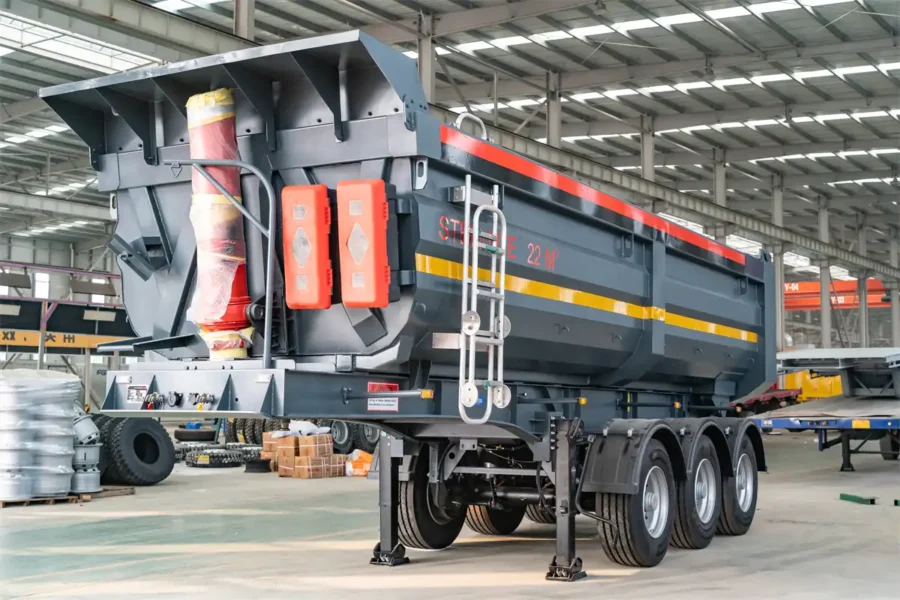

Tri Axle Tipper Trailer for Sale
Axle: 3 Axle FUWA/BPW
Tilt Angle: 45
Overall Dimension: 11573x2550x3700mm
Delivery: 7-20 Days
The tri axle tipper trailer is our most advantageous product. Benchi Heavy Industry has been producing tipper semi trailer for more than 20 years with dozens of patents and certifications. We have the most advanced production technology. It’s no exaggeration to say that our designers can design any trailer that meets your needs. All you need is to state your needs in as much detail as possible.
Since its inception, Benchi Heavy Industry has exported more than 1,500 3 axle tipper trailers around the world.
Tri Axle Tipper Trailer Application
The tri axle tipper trailer has a wide range of applications. It is most suitable for transporting heavy and hard goods, especially ores.
It is also commonly used in other areas:
- Mining and quarrying. Used to transport ores, coal and other minerals.
- Construction. Used to transport various building materials such as sand, gravel, etc.
- Agriculture. Used to transport grains, animal feed, fertilizers, etc.
Our Advantage
- The tri axle tipper trailer manufactured by Benchi utilizes a U-shaped design. This not only reduces its own weight, but also reduces residue when unloading.
- Optional stabilizing brackets are available for a more stable ride.
- Uses a single beam through the tipper axle. Longer service life.
- Rear taillight is fitted with a protective cover to prevent it from being damaged by heavy objects when unloading.
- Use brand-name genuine parts, including Jost traction pins and outriggers, and Hyva hydraulic cylinders.
- The suspension is thickened, which is more suitable for transporting goods under complicated road conditions in Africa.
Tri Axle Tipper Trailer Specifications
| Tri Axle Tipper Trailer Specifications | ||
|---|---|---|
| Parameter | Overall Dimension | Length × Width × Height: 11573x2550x3700mm |
| King Pin Setting | 950mm From the Face of Front Bolster | |
| Axle Space | 6571+1310+1310mm | |
| Tare Weight (kg) | 13,500 | |
| Payload (kg) | ≤70,000 kg | |
| Fabric | Main Beam | Submerged Arc Welding |
| Flange and Web (mm) | 16/10/16 | |
| Body | Inside Dimension | Length × Width × Height: 10500x2350x1800mm |
| Capacity | 22-45m³ | |
| Floor | 8mm | |
| Side Wall | 6mm | |
| OEM Parts | Landing Gear | 30T, Single Side Operated |
| Kingpin | JOST 3.5’’ | |
| Hydraulic System | Hyva or Binotto | |
| Brake System | Dual Lines Air Brake System, T30/30 on All Axles, WABCO Brake Valve, Without ABS | |
| Elec System | 24V ISO1185 Standard Modular Harness | |
| Suspension | 3-Axle Reinforced Heavy Duty Mechanical Suspension | |
| Leaf-Spring | 12PCS 90*16 | |
| Axle | 3*16T | |
| Tire | 13*12.00R20-18PR | |
| Rim | 13×8.5*20 | |
| Spare Tire Carrier | 2 Units Per Chassis | |
| Tool Box | 1 Unit Per Chassis | |
| Paint | Wear-Resistant Two-Component Paint, Color According to Customer’s Requirement | |
| Others | Standard Export Logo and Stickers | |
Why Choose Us?
- Tri axle tipper trailer is our most advantageous product with an annual export volume of more than 200 units.
- More than 10 dump semi trailer patents, 20 years manufacturing experience, 60% customer repurchase rate!
- The factory has advanced production equipment, standardized production workshop and professional staff.
- We provide perfect pre-sale and after-sale service, as well as professional technical support.
- As a semi trailer factory, we can offer you lower price and don’t worry about the quality.
