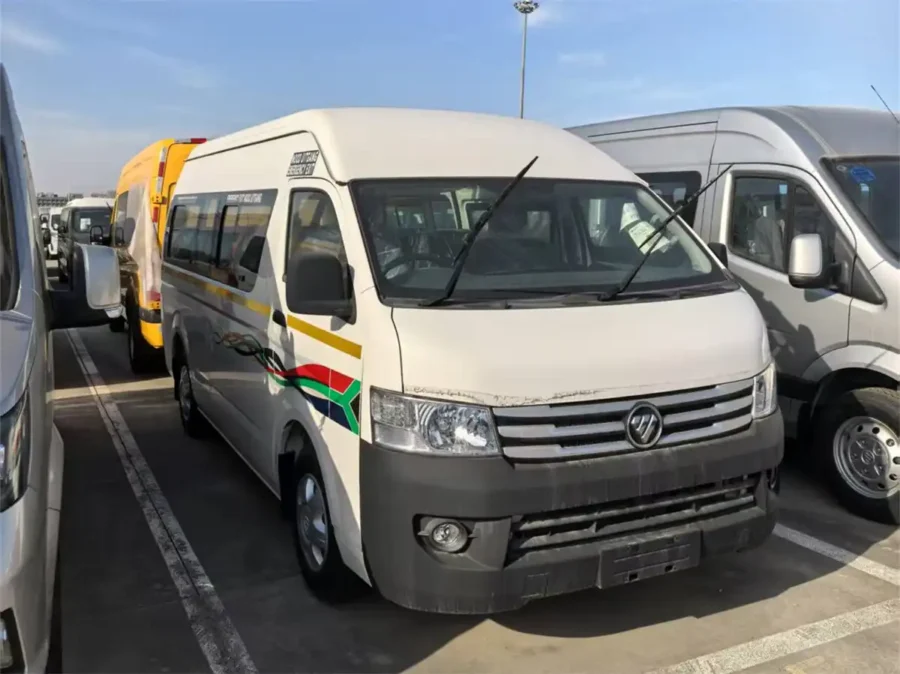

FOTON VAN

Export to South Africa. To meet the speed limit requirements for public bus applications in the South African VAN market, the K1 wide-body model must display a speed limit of 120 km/h. Most regions in South Africa have a tropical savanna climate, with the eastern coastal areas experiencing a tropical monsoon climate and the southern coastal areas a Mediterranean climate. The highest temperatures can reach 32–38°C; the lowest temperatures are around -10°C. Annual precipitation in the eastern regions can reach up to 1000 mm, with an average of 450 mm. The terrain is predominantly plateau, with urban roads accounting for 70% and rural mountain, dirt, and gravel roads making up 25%.

  • Overall (Chassis) Dimensions: 5380 x 1920 x 2285
  • Curb Weight: 2160
  • Gross Vehicle Weight (GVW): 3400
  • Body Width: 1920
  • Roof Height: High Roof
  • Steering Position: Right-Hand Drive
  • Cab Configuration: Semi-Cab
  • Seating Capacity (Number of Passengers): 16
  • Fuel Type: Gasoline
  • Engine/Motor Model:
  • Engine Manufacturer / Battery Manufacturer: Shenyang Aerospace Mitsubishi
  • Displacement (cc) / Battery Capacity (kWh): 2378
  • Emission Standard: Euro IV
  • Power/Speed (kW/rpm): 100
  • Engine Torque (Nm/rpm): 200
  • Transmission Model: ZM001AD
  • Transmission Type: 5MT (5-Speed Manual)
  • Transmission Manufacturer: Zhongma
  • Front Axle Load: /
  • Center/Rear Axle Load: 1800
  • Drive Axle Gear Ratio: 4.875
  • Brake Type: Wheel-mounted hand brake
  • Brake Configuration: Front Disc / Rear Drum
  • Brake Control System: ABS + EBD
  • Tire Model: 195R15C steel wheel with hubcap
  • Number of Tires: 5
  • Fuel Tank Capacity: 65L
  • Suspension Type: Front – Double wishbone torsion bar independent suspension; Rear – Steel leaf spring non-independent suspension
  • Leaf Spring Configuration (Rear): 3+1
  • Climate Control System: Front heater without air conditioning / Electric air conditioning
  • Basic Equipment (Entertainment System): Radio
  • Bumpers: Body-color front and rear bumpers
  • Radar: No reversing radar / No front collision radar
  • Standard Body Package (Seats, Doors, Windows, Mirrors): Manual windows with mechanical locks; manually adjustable, non-defrost, manually folding mirrors without turn signals; knit seats without headrests
