6 Axle extendable Low-Bed Semi-Trailer

The 6 Axle Extendable Low Bed Semi Trailer is a premium heavy-haul transportation solution specifically designed for transporting oversized, overweight, and extra-long cargo. Featuring a 6-meter extendable double-beam structure, the trailer can accommodate a wide range of cargo lengths while maintaining excellent structural strength and stability. The low-bed platform design lowers the center of gravity, making it ideal for transporting construction machinery, mining equipment, transformers, steel structures, wind power components, and other heavy industrial cargo. Equipped with a full air suspension system, steering-friendly lift axles, hydraulic movable ramps, and a reinforced chassis structure, this trailer delivers outstanding performance for long-distance heavy transport operations in Africa, the Middle East, Central Asia, and other demanding markets.

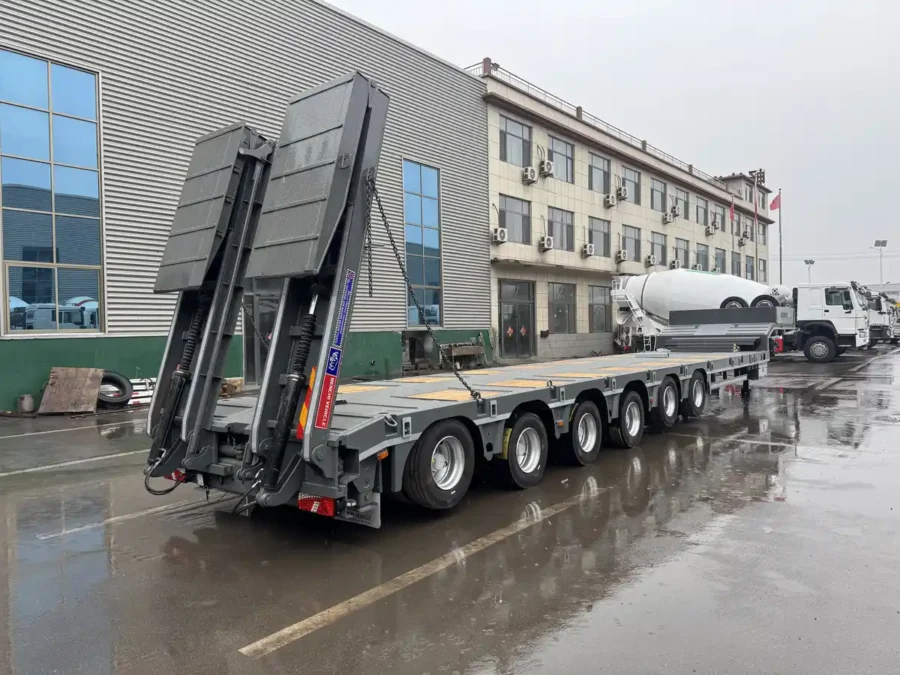

Detailed images of the 6-Axle Extendable Low-Bed Semi-Trailer

6-Axle Low-Bed Semi-Trailer

the 6-Axle Extendable Low-Bed Semi-Trailr Specification

Specification	Details
Trailer Model	6 Axle Extendable Low Bed Semi Trailer
Overall Dimension	17000 × 2550 (+250+250 Widening) mm × H
Extendable Length	6 Meters
Extension System	Mechanical Extension with 2 × 300mm Sliding Blocks
Main Beam (Outer)	Top Flange 14mm / Web Plate 10+10mm / Bottom Flange 14mm
Main Beam (Inner)	Top Flange 14mm / Web Plate 10+10mm / Bottom Flange 16mm
Floor Plate	5mm Checkered Plate with Wooden Blocks
Ramp Type	Hydraulic Double-Section Ramp with Left-Right Sliding Function
Suspension System	Full Air Suspension
Lift Axle Function	1st, 2nd and 6th Axles Liftable
Landing Gear	SAF Linkage Landing Gear with S-Type Legs
Axle Brand	CTC 11T Axles
Number of Axles	6 Axles
Tire Brand	Double Coin Tires
Tire Specification	235/75R17.5
Tire Quantity	26 Tires (Including 2 Spare Tires)
Container Locks	8 Container Twist Locks
Stake Pockets	5 Stake Pockets Per Side (80 × 80 mm)

the 6-Axle Extendable Low-Bed Semi-Trail Application

1. Construction machinery transportation: Ideal for transporting excavators, bulldozers, motor graders, road rollers, cranes, and other heavy construction equipment.

2. Mining equipment logistics: Suitable for hauling drilling machines, crushing plants, mining loaders, and oversized mining machinery in harsh operating environments.

3. Wind power and energy projects: Designed for transporting wind turbine components, transformers, generators, and large electrical equipment.

4. Steel structure and bridge construction: Perfect for carrying steel beams, bridge sections, precast concrete structures, and long engineering components.

5. Container and special cargo transportation: Equipped with 8 container locks and stake pockets, allowing flexible transportation of containers, machinery, and irregular cargo.

Advantages

1. 6-meter extendable loading platform: The double-beam extension system provides up to 6 meters of additional loading length and includes two 300mm movable sliding blocks for flexible cargo positioning.

2. Heavy-duty reinforced beam structure: The outer beam adopts 14mm upper flange, 14mm lower flange, and 10+10mm web plates, while the inner extendable beam features a reinforced 16mm lower flange for superior strength.

3. Hydraulic movable double ramps: Equipped with hydraulic dual-section ramps with left and right sliding functions, enabling safe and convenient loading of heavy machinery.

4. Full air suspension system: Air suspension with liftable 1st, 2nd, and 6th axles improves ride comfort, reduces tire wear, and enhances fuel efficiency during unloaded operation.

5. Excellent load-bearing performance: Six CTC 11-ton axles combined with 26 Double Coin 235/75R17.5 tires provide outstanding load distribution and transportation stability.

6. Flexible widening structure: The trailer can be widened by 250mm on each side, increasing cargo adaptability for oversized machinery and wide industrial equipment.

7. Multi-functional cargo securing system: Equipped with 8 container locks and 5 stake pockets per side (80×80mm), allowing secure transportation of containers, steel structures, and special cargo.

8. Durable loading platform: Constructed with a 5mm checker plate floor combined with hardwood blocks, improving durability, anti-slip performance, and machinery loading safety.

Why choose benchi 6-Axle Extendable Low-Bed Semi-TrailTrailer?

1. Professional heavy-haul trailer manufacturer: BENCHI specializes in low bed trailers, extendable trailers, modular trailers, and customized heavy transportation solutions.

2. Advanced engineering design: Our trailers are developed using high-strength steel structures and optimized load-distribution technology to maximize safety and durability.

3. Premium component selection: Equipped with quality components including CTC axles, SAF landing gear, Double Coin tires, and advanced air suspension systems.

4. Customization capability: BENCHI can customize trailer length, payload capacity, axle configuration, widening systems, and loading solutions according to customer requirements.

5. Extensive export experience: BENCHI trailers operate successfully in Africa, the Middle East, Central Asia, Southeast Asia, and other international markets, supported by professional after-sales service and spare parts supply.
