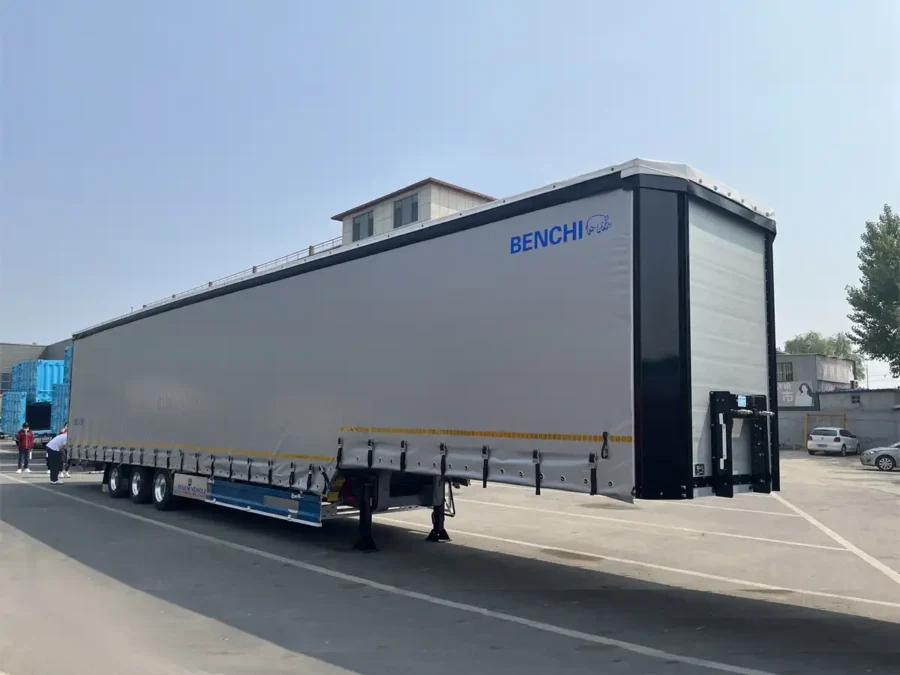

57 FT Tautliner Trailer
Overall Dimensions: 17150*2550*4000mm
Curb Weight: 7.58T
Maximum Load Capacity: 40T
Transport Medium: Bulk Cargo
Capacity: 127 Cubic
57 FT Tautliner Trailer Specification
| Curtain Side Semi Trailer Specification | ||||
|---|---|---|---|---|
| Overall Dimensions | Length*Width*Height | 17150*2550*4000mm | ||
| Internal Dimensions | Length*Width*Height | 16892*3105*3105mm | ||
| Curb Weight | 7.58T | |||
| Maximum Load Capacity | 40T | |||
| Transport Medium | Bulk Cargo | |||
| Superstructure | Side/Top Curtain | Sliding curtain, front and rear locking, 3 aluminum alloy cargo planks between each pair of pillars. Curtain-style roof, rectangular canopy support beams. |
||
| Front Barrier | Aluminum Alloy | |||
| Rear Door | Aluminum, 4 internal steel locking bars | |||
| Pillars | Sliding pillars, 4 per side | |||
| Curtain Material | 950g/m² single-sided coated fabric (white) for side curtain. 650g/m² single-sided coated fabric for top curtain. |
|||
| Main Chassis | Cross Beam Specification (mm) | 120X50X3.75/Q345 bent component profile | ||
| Side Beam Specification (mm) | 14mm steel bent | |||
| Floor Thickness (mm) | 28mm longitudinal wooden floor | |||
| Diagonal Brace Specification (mm) | 3.75mm Q345C profile according to drawing dimensions | |||
| Transverse Brace Spacing (mm) | 450-750 | |||
| Main Beam | Main Beam Height (mm) | 140/250 | ||
| Upper Flange Thickness (mm) | 12mm | |||
| Lower Flange Thickness (mm) | 14mm | |||
| Main Beam Web (mm) | Front 8mm | |||
| Lower Flange Reinforcement (mm) | 6mm | |||
57 FT Tautliner Trailer Advantages
- Rapid loading and unloading
The curtain side trailer allows you to quickly pull the tarp to one side when loading and unloading cargo. The semi-open structure makes it easy to load and unload with a forklift. - Multi-purpose
The curtain side trailer can be used to transport a variety of goods, from palletized goods to oversized items, it is a very practical trailer. - Not affected by weather
The curtain side trailer is well sealed and has good rainproof effect. There is no need for extra tarping.
Product Detail Photos
Why Choose Benchi Trailer?
- Benchi is a semi-trailer manufacturer with 20 years experience;
- Benchi has a strong scientific research team, which has obtained more than one hundred invention patents in total;
- We are good at innovation and good at solving users’ pain points;
- Perfect pre-sale and after-sale service and professional technical support;
- Advanced production equipment, with industry-leading intelligent production workshop;
- Factory direct sales, to provide the most competitive prices, no middlemen to earn the difference in price.
What you need to know is that we are a factory, not dealers and traders. We are able to provide you with lower prices than dealers, not let you you spend more money!
