5 Axle Grain Side Tipper Semi Trailer

The 5 Axle Grain Side Tipper Semi Trailer is a specialized bulk cargo transportation solution designed for efficient grain, agricultural product, and loose material logistics. Featuring a double side tipping system, this trailer allows unloading from both sides, significantly improving loading and discharge efficiency in agricultural and industrial operations. With a 58m³-class cargo box, reinforced main beam structure, BENCHI 13T axles, and a combination of air and mechanical suspension systems, it provides excellent stability and durability for heavy-duty transportation. Equipped with independent hydraulic lifting control for two compartments, lift-up side doors, and European standard configuration components, this side tipper trailer is ideal for grain transport, farm logistics, and bulk material handling applications.

5 Axle Grain Side Tipper Semi Trailer Details

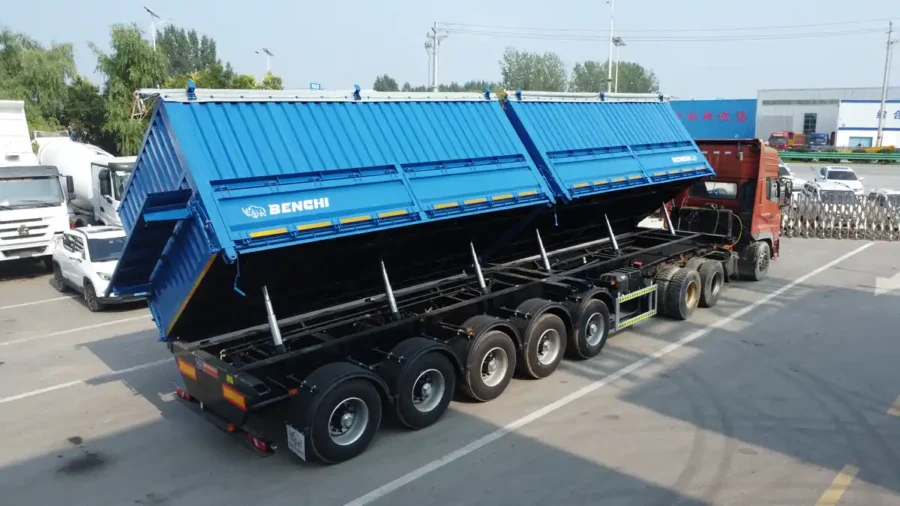

5 Axle Grain Side Tipper Semi Trailer

Get a Quote

5 Axle Grain Side Tipper Semi Trailer Application

1. Grain and agricultural product transportation: Ideal for transporting wheat, corn, rice, soybeans, and other bulk agricultural products between farms, storage facilities, and processing plants.

2. Farm logistics operations: Suitable for agricultural companies requiring efficient loading and unloading solutions for large-volume grain transportation.

3. Bulk material transportation: Capable of carrying fertilizer, feed materials, biomass, and other loose cargo requiring fast side unloading.

4. Port and warehouse grain handling: Perfect for transferring bulk agricultural products between ports, warehouses, silos, and distribution centers.

5. Long-distance commercial transportation: Designed for fleet operators requiring high-efficiency trailers for continuous bulk cargo transport.

5 AXLE GRAIN SIDE TIPPER SEMI TRAILER SPECIFICATIONS

Specification	Details
Trailer Model	5 Axle Grain Side Tipper Semi Trailer
Side Tipping Type	Double Side Tipping System
Overall Dimension	12000 × 2550 × 3550 mm
Internal Dimension	5850 × 2450 × 2000 mm
Main Beam	Upper Flange 12mm, Lower Flange 14mm, Web Plate 8mm
Floor Plate	3mm Steel Plate
Side Wall	2mm Steel Plate
Hydraulic Cylinder	130# Hydraulic Lifting Cylinder
Suspension System	1st and 5th Axle Air Suspension with Lift, 2nd/3rd/4th Axle Mechanical Suspension
Axle	BENCHI 13T Axle
Tire Specification	Double Coin 385/65R22.5 Tires
Landing Gear	JOST A300C Landing Gear
Rain Cover	Manual Tarp System
Side Door	1200mm Lift-Up Doors on Both Sides
Standard	European Standard Configuration
Additional Configuration	Plastic Tool Box, Plastic Hand Wash Tank, Aluminum Alloy Side Guard, Independent Hydraulic Lifting Control for Two Compartments

5 AXLE GRAIN SIDE TIPPER SEMI TRAILER advantages

1. Double side tipping system: The dual-side hydraulic tipping design allows unloading from both sides, improving operational flexibility and reducing unloading time.

2. Large-volume cargo capacity: The 5850 × 2450 × 2000mm internal cargo box provides sufficient space for high-volume grain and bulk material transportation.

3. Reinforced chassis structure: The main beam uses 12mm upper flange, 14mm lower flange, and 8mm web plate design to provide excellent strength and durability.

4. Reliable hydraulic lifting system: Equipped with a 130# hydraulic cylinder to provide stable and powerful side tipping operation.

5. Optimized suspension configuration: The first and fifth axles use air suspension with lifting function, while the middle three axles use mechanical suspension for improved load distribution and road adaptability.

6. Heavy-duty axle and tire system: BENCHI 13T axles combined with Double Coin 385/65R22.5 tires provide strong load-bearing capability and long service life.

7. European standard configuration: Equipped with JOST A300C landing gear, aluminum alloy side guards, and professional safety components to meet international transportation requirements.

8. Flexible cargo access design: 1200mm lift-up side doors on both sides improve loading convenience and material handling efficiency.

9. Independent hydraulic control system: Two-compartment hydraulic lifting control allows operators to manage different loading sections independently for safer operation.

why choose us side tipper trailer

1. Professional side tipper trailer manufacturer: BENCHI specializes in manufacturing grain trailers, side tipping semi trailers, dump trailers, and customized bulk transportation solutions.

2. Advanced hydraulic tipping technology: BENCHI develops reliable hydraulic systems with optimized cylinder configurations to ensure safe and efficient unloading performance.

3. High-strength manufacturing standards: Strong steel structures, precision welding processes, and strict quality inspections ensure excellent durability in heavy-duty applications.

4. International configuration options: BENCHI supports European standard components, premium axle systems, suspension upgrades, and customized accessories for different markets.

5. Global export experience: BENCHI provides technical support, spare parts supply, and after-sales service for agricultural, logistics, and bulk transportation customers worldwide.
