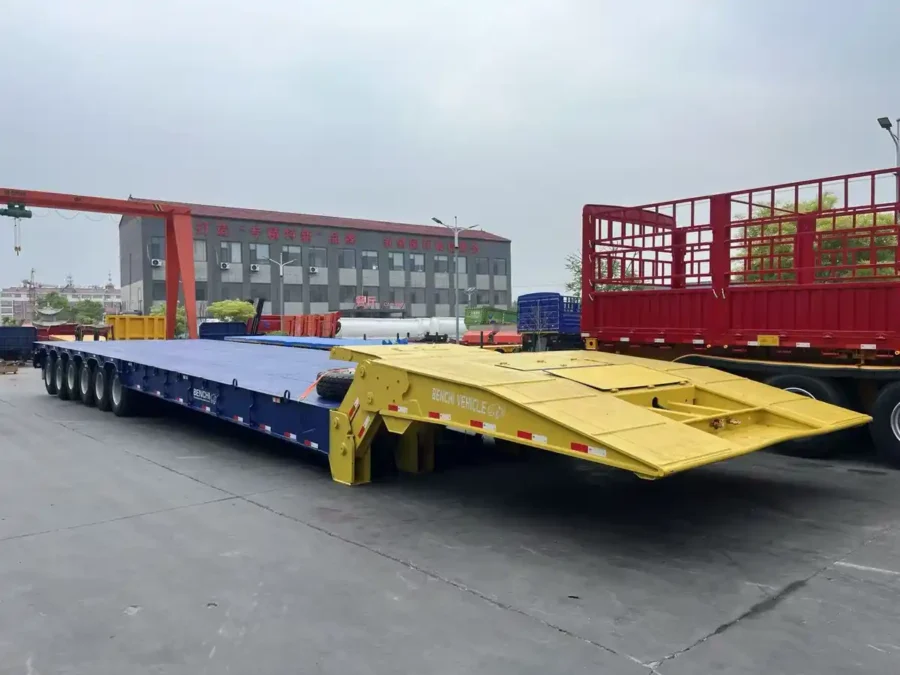

5 Axle Folding Gooseneck Low Bed Semi Trailer

The 5 Axle Folding Gooseneck Low Bed Semi Trailer is an ultra-heavy-duty transportation solution designed for hauling oversized and overweight machinery with a payload capacity of up to 120 tons. Featuring a hydraulic folding gooseneck structure, this trailer provides convenient front loading capability for crawler machinery while reducing the loading angle and improving operational efficiency. Built with a reinforced 500mm main beam, BENCHI extended axles, and a 20-ton axle capacity configuration, it delivers outstanding strength, stability, and durability for extreme heavy-haul applications. Equipped with a rear axle hydraulic lift system, remote control operation, and a 22HP diesel power unit, this trailer is ideal for transporting excavators, mining equipment, construction machinery, and other oversized industrial cargo.

6 Axle Folding Gooseneck Low Bed Semi Trailer 7

6 Axle Folding Gooseneck Low Bed Semi Trailer 7

6 Axle Folding Gooseneck Low Bed Semi Trailer 7

6 Axle Folding Gooseneck Low Bed Semi Trailer 7

6 Axle Folding Gooseneck Low Bed Semi Trailer 7

6 Axle Folding Gooseneck Low Bed Semi Trailer 7

6 Axle Folding Gooseneck Low Bed Semi Trailer 7

6 Axle Folding Gooseneck Low Bed Semi Trailer

1. Large construction machinery transportation: Ideal for hauling excavators, bulldozers, cranes, loaders, and other heavy construction equipment up to 120 tons.

2. Mining equipment logistics: Suitable for transporting mining excavators, drilling machines, crushers, and other heavy machinery between mining areas and project locations.

3. Crawler equipment transportation: The hydraulic folding gooseneck design provides a low loading angle, allowing crawler machinery to drive directly onto the trailer platform.

4. Infrastructure engineering projects: Widely used for transporting heavy equipment and components for highways, bridges, power plants, and large construction projects.

5. Professional heavy-haul operations: Designed for specialized transport companies handling oversized and overweight cargo requiring high-strength trailer solutions.

1. 120-ton heavy payload capacity: The 5-axle structure with 20-ton capacity per axle provides excellent load distribution and stable transportation performance.

2. Hydraulic folding gooseneck system: Enables convenient front loading and unloading, making it easier to transport crawler-type machinery and oversized equipment.

3. Reinforced main beam structure: The 500mm-high main beam uses a 20mm top flange, 25mm bottom flange, and double 12+12mm web plates for superior bending and torsional resistance.

4. Extended heavy-duty axle design: BENCHI extended axles improve load support and stability, while the rear hydraulic lift axle reduces tire wear and improves maneuverability.

5. Powerful hydraulic operating system: The 4+2 hydraulic cylinder configuration combined with a 22HP diesel power unit provides reliable folding gooseneck operation.

6. Remote control hydraulic operation: Remote control operation with side-mounted switches improves convenience, safety, and working efficiency during loading procedures.

7. Heavy-duty tire configuration: Equipped with 21 pieces of 1200R20 steel wire tires, providing strong load-bearing capability and durability for harsh transport conditions.

8. Optimized rear platform design: The full arc rear platform around the tire area increases usable space and improves support for oversized cargo.

1. Professional heavy-haul trailer manufacturer: BENCHI specializes in folding gooseneck trailers, low bed semi trailers, extendable trailers, and customized heavy transportation solutions.

2. Engineering solutions for extreme loads: BENCHI designs reinforced structures based on cargo weight, equipment dimensions, and specific transportation requirements.

3. High-strength manufacturing process: Advanced welding technology, quality steel materials, and strict inspections ensure long service life under heavy-duty operation.

4. Customized hydraulic trailer solutions: Gooseneck structure, axle configuration, lifting systems, control methods, and accessories can be customized according to customer needs.

5. Global heavy transport experience: BENCHI provides technical support, spare parts supply, and professional after-sales service for customers in mining, construction, energy, and infrastructure industries worldwide.
