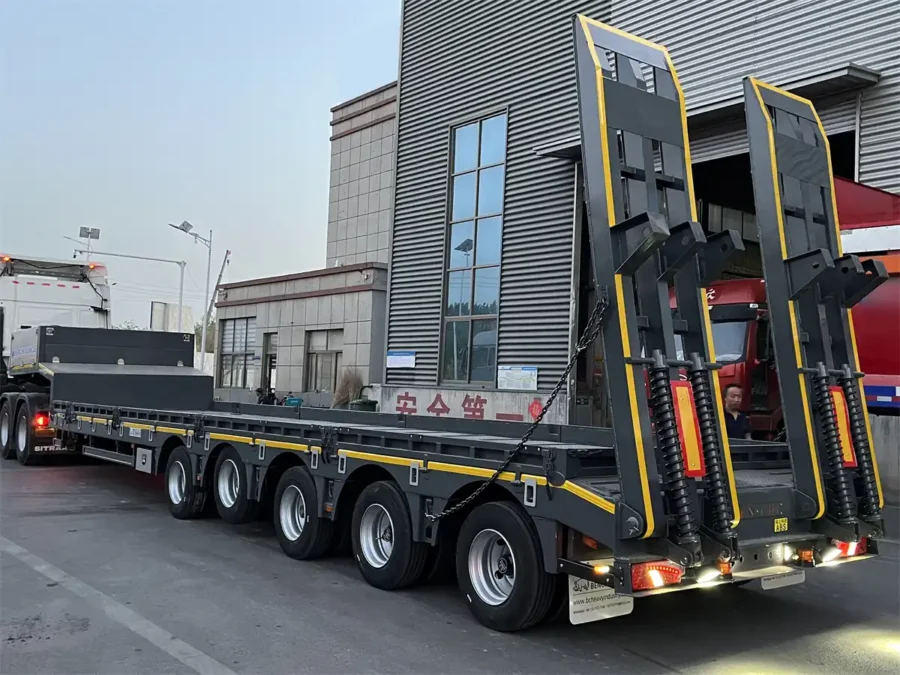

5 Axle 60 Ton Lowbed Trailer

The BENCHI 5 axle 60 ton lowbed trailer is suitable for transporting heavy machinery and equipment. The trailer body is made of T700 high strength steel for a strong and durable structure. The service life is up to 10 years or more.

5 Axle 60 Ton Lowbed Trailer Detail

The 1st and 2nd axles can be raised. Raising the axles for light loads and using only the 3rd-5th axle bearings to carry the weight can reduce tire wear and prolong service life; lowering the axles for heavy loads improves the carrying capacity.

5 Axle 60 Ton Lowbed Trailer

5 Axle 60 Ton Lowbed Trailer Specifications

5 Axle 60 Ton Lowbed Trailer
Vehicle Parameters	Overall Dimensions	Length * Width * Height	1550025503330mm
	Internal Dimensions	Length * Width * Height	1550025003330mm
	Vehicle Weight		15T
	Maximum Load Capacity		60T
	Transport Medium		Construction Equipment
	Bodywork	Sidewall	250mm movable board on each side
		Front Plate	25mm high
		Climbing Ladder	A pair of double-spring climbing ladders
		Widener	Square tube
		Main Frame	Through Beam Specification	Factory Fitted
			Side Beam Specification	250# I-beam
			Floor Thickness	3mm
			Bracing	Channel Steel
			Cross Brace	Standard
	Main Beam	Beam Height	350mm
		Upper Flange Thickness	18mm
		Lower Flange Thickness	20mm
		Beam Web	12mm+12mm
		Lower Flange Reinforcement Plate	Standard
Running Gear	Axle		BPW	5 Axle
	Tire		235/70R17.5	20 Pcs
	Wheel Rim		6.75×17.5 Steel Rim	20 Pcs
	Landing Gear		28T Single Action	1 Pair

Why BENCHI Heavy Industry?

BENCHI is a professional semi-trailer manufacturer, we have got many patents and honors.
We have complete testing equipment to ensure that every semi-trailer meets the standard.
We have hundreds of welding experts with professional certificates, and we use the world’s top welding machine, which makes the welding firm and neat.
We use two-component paint for better adhesion.
We provide customized semi-trailers and 24 hours professional service.
