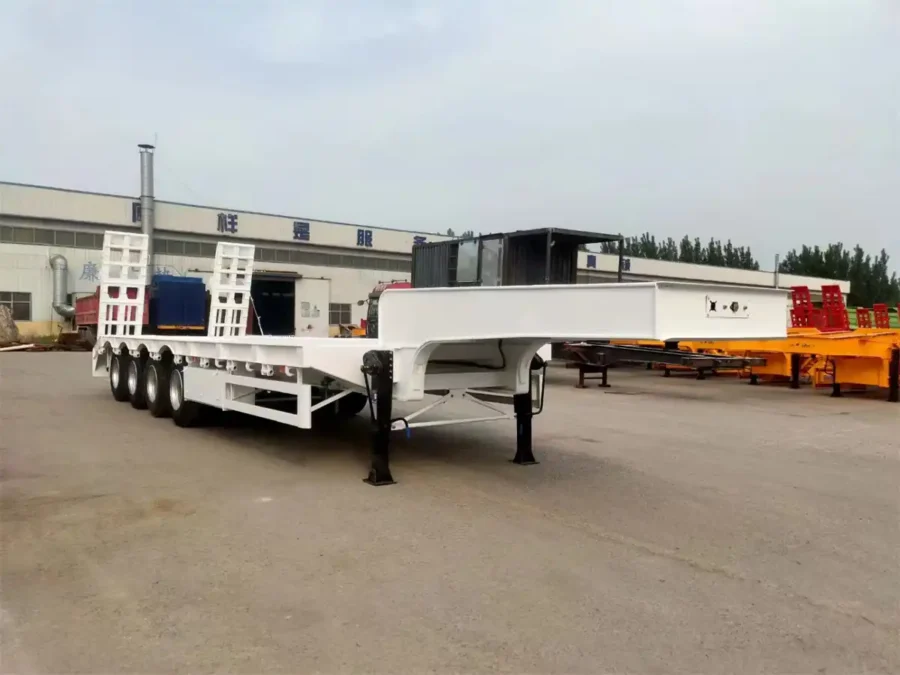

4 Axle Low Bed Trailer

4 Axle Low Bed Trailer

Axle: 4 Axle FUWA/BPW

Load Capacity: 60-100 Ton

Application: Mechanical Equipment

Delivery: 7-20 Days

Benchi Trailer produces the 4 Axle Low Bed Trailer with a standard load capacity of 80 tons, allowing an overload of 25%. It is suitable for the transportation of large machinery, large ores, but also heavy goods such as steel coils and prefabricated steel frames.

Product Features

  • Using 13 tons Fuwa axle with high load carrying capacity;
  • T700 high-strength steel main beam, higher strength;
  • Lightweight design, reduce the weight while still able to ensure the strength;
  • Two-component paint spraying, not easy to rust, long life, not easy to leave marks;
  • Mechanical ladder or hydraulic ladder is optional;
  • Add the expansion platform, both sides can add a total of 500mm width of the cargo platform.


Inquire

4 Axle Low Bed Trailer Specifications

4 Axle Low Bed Trailer Specifications
Overall Length 11000~16000mm
Deck Length 8000mm
Overall Height 1664mm
Overall Width 2500~3500mm
Payload 80000kg
Chassis
  • Heavy Duty and Extra Durability Designed I Beam;
  • High Tensile Steel T700;
  • Top Flange 20mm, Width 140mm;
  • Middle Flange 11.5mm;
  • Bottom Flange 20mm, Width 140mm.
Axle
  • 3 Axles;
  • Loading Capacity Each Axle: 13T/16T/20T;
  • Brands: FUWA/BPW/L1
Suspension Mechanical Suspension or Air Suspension (Optional).
Leaf Spring 10-Piece Leaf Spring.
Floor 3~8mm Checker Plate.
Ramp Mechanical Spring Ramp or Hydraulic Lifting Ramp (Optional).
King Pin JOST Brand 2” Bolt-in King Pin.
Landing Gear JOST Brand Two-Speed, Manual Operating, Heavy Duty.
Wheel Rim
  • 6.5-20
  • 7.5-20
  • 8.00-20
  • 8.5-20
Tyre
  • 8.25R20
  • 10.00R20
  • 11.00R20
  • 11R22.5
  • 235/70 R17.5
  • 315/80 R22.5
Spare Tire One Set of Spare Tire Including a Carrier.
Braking System
  • WABCO RE 6 Relay Valve;
  • T30/30+T30 Spring Brake Chamber;
  • 45L Air Tanks.
Painting Two-Component Paint
Accessories
  • One Standard Tool Box;
  • Optional Side Bracket for Increased Overall Width,
  • Removable and Swinging.

Why Choose Us?

  • Professional Low Bed Trailer Manufacturer
  • Over 20 Years of Experience in Semi-Trailer Manufacturing
  • 13 Patents for Utility Models of Low Bed Trailers
  • Innovative design to solve user pain points
  • Perfect pre-sale and after-sale service, professional technical support
  • Lowbed Trailers are One of Our Most Competitive Products
  • Advanced Equipment, Exquisite Workmanship
  • Offering the Most Competitive Prices

Learn more about our story.

4 Axle Lowboy Trailer Detail

4 Axle Low Bed Trailer

Expandable by 250mm on Each Side

4 Axle Low Bed Trailer

Optional Hydraulic Ladder
