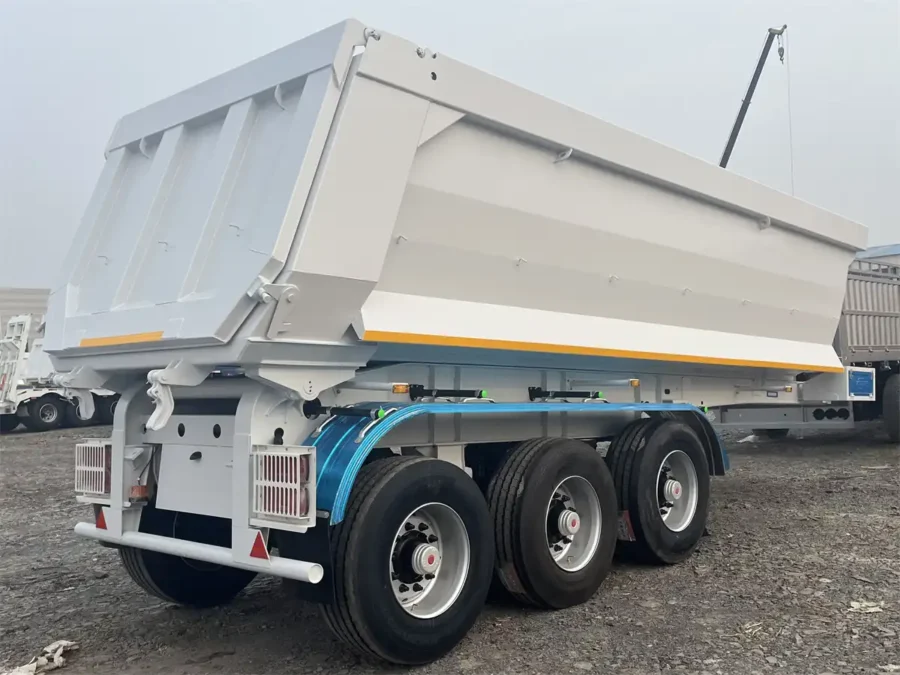

3 Axle Tipper Trailer

BENCHI 3 axle tipper trailer for sale. We use famous brand spare parts, such as Hyva hydraulic cylinders, Jost legs, BPW axles, Triangular tires and so on. Not only the service life is longer, but also it is easier to find the same type of spare parts locally.

3 Axle Tipper Trailer Details

Hyva Hydraulic Cylinders

The stability performance of Hyva hydraulic cylinders is higher than that of other brands. The lifting force is stronger.

Thickened Suspension

We’ve increased the thickness of the suspension to give it more load-carrying capacity. Smooth ride even when overloaded.

Subframe

Uses T700 high strength steel, which is more resistant to pressure compared to ordinary Q235 steel.

Optional Air Suspension

Air suspension reduces the bumpy ride of the 3 axle tipper trailer on roads with poor road conditions.

Other Details

3 Axle Tipper Trailer Details

Product Advantages

U-shaped cargo box design, which is not only lighter but also ensures clean unloading.
Optional stabilizing brackets are available for increased stability during transport.
Rear tail lights are equipped with protective covers to prevent damage from stones during unloading.
Uses branded original parts, including Jost kingpins and landing gears, as well as Hyva hydraulic cylinders.
Thickened suspension, better suited for transporting goods in poor road conditions.

Get the Latest Quote for 2024

Tri Axle Tipper Trailer Specifications

3 Axle Tipper Trailer Specifications
Parameter	Overall Dimension	Length × Width × Height: 11573x2550x3700mm
	King Pin Setting	950mm From the Face of Front Bolster
	Axle Space	6571+1310+1310mm
	Tare Weight (kg)	13,500
	Payload (kg)	≤70,000 kg
Fabric	Main Beam	Submerged Arc Welding
Fabric	Flange and Web (mm)	16/10/16
Body	Inside Dimension	Length × Width × Height: 10500x2350x1800mm
	Capacity	22-45m³
	Floor	8mm
	Side Wall	6mm
OEM Parts	Landing Gear	30T, Single Side Operated
	Kingpin	JOST 3.5’’
	Hydraulic System	Hyva or Binotto
	Brake System	Dual Lines Air Brake System, T30/30 on All Axles, WABCO Brake Valve, Without ABS
	Elec System	24V ISO1185 Standard Modular Harness
	Suspension	3-Axle Reinforced Heavy Duty Mechanical Suspension
	Leaf-Spring	12PCS 90*16
	Axle	3*16T
	Tire	13*12.00R20-18PR
	Rim	13×8.5*20
	Spare Tire Carrier	2 Units Per Chassis
	Tool Box	1 Unit Per Chassis
Paint	Wear-Resistant Two-Component Paint, Color According to Customer’s Requirement
Others	Standard Export Logo and Stickers

Why Choose Us?

Tri axle tipper trailer is our most advantageous product with an annual export volume of more than 200 units.
More than 10 dump semi trailer patents, 20 years manufacturing experience, 60% customer repurchase rate!
The factory has advanced production equipment, standardized production workshop and professional staff.
We provide perfect pre-sale and after-sale service, as well as professional technical support.
As a semi trailer factory, we can offer you lower price and don’t worry about the quality.
