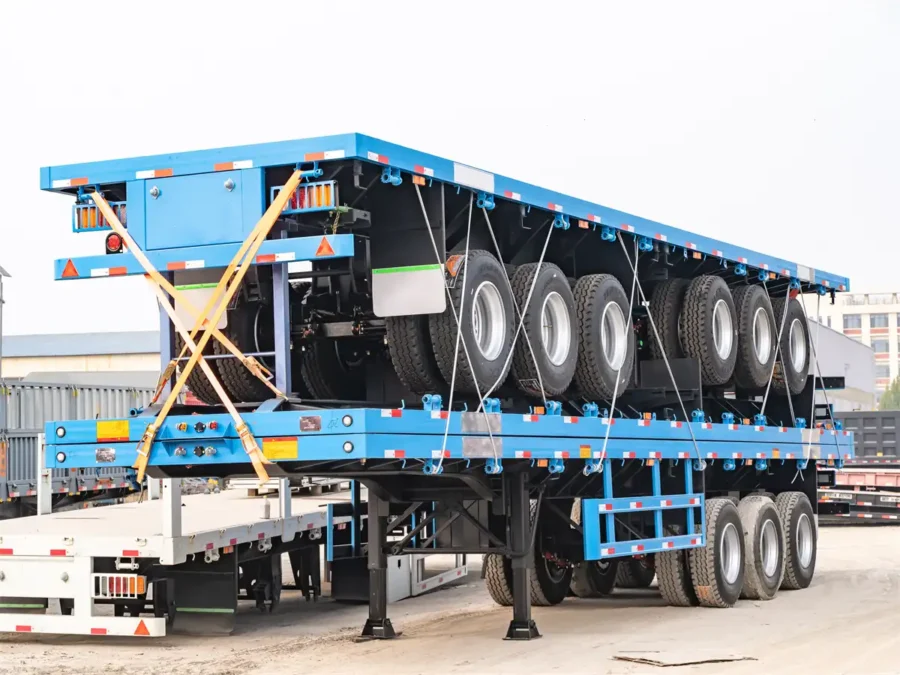

3 Axle Flatbed Trailer
L*W*H: 12000x2500x1570 mm
Axle: 3 Axle
Capacity: 60-80 Ton
Twistlock: 12 Units
Sell BENCHI 3 Axle Flatbed Semi Trailer. We are a professional semi trailer manufacturer in China, providing various types of semi trailers for customers in Africa, Asia, and South America. With 20 years of manufacturing experience, we can customize trailers according to your specific requirements.
3 Axle Flatbed Trailer Details
Advantages of BENCHI 3 Axle Flatbed Trailer
BENCHI 3 axle flatbed trailers are designed for transporting 20ft and 40ft containers, pipes, timber, and bulk cargo.
The trailer frame adopts high-strength I-beam and channel steel structures, ensuring excellent torsional resistance, impact resistance, and collision resistance, allowing it to operate reliably under various complex road conditions.
All components are selected from reliable brands, including JOST landing gear, WABCO emergency braking systems, and BENCHI FUWA axles, ensuring a longer service life for our 3 axle flatbed semi trailers. Customized brand options are also available according to customer requirements.
The loading platform is covered with 3mm checkered steel plates to increase friction and improve cargo stability during transportation.
BENCHI 3 axle flatbed semi trailers use a double-component coating system specially designed for high-temperature environments in Africa. This coating provides longer service life, better heat resistance, and excellent protection against paint peeling.
3 Axle Flatbed Trailer Specifications
| 3 Axle Flatbed Trailer Specifications | |
|---|---|
| Overall Dimensions (L x W x H)） | 12,500 x 2,500 x 1,530 mm |
| Payload | 50 tons |
| Main Beam | High-strength T700 steel |
| Decking | 3 mm checkered steel plate |
| Side Beams | No. 16 channel steel |
| Kingpin | 2-inch (50#) high-strength steel, bolt-in type |
| Landing Gear | 28-ton capacity |
| Suspension | American-style heavy-duty underslung tri-axle suspension with equalizer bars |
| Axles | 150×150 mm square axles, 13-ton capacity; 3 axles |
| Tires | 12R22.5 tires, 12 units, well-known Chinese brand |
| Rims | 9.00×22.5, 10-hole ISO standard, 12 units |
| Braking System | Dual-circuit air brake system with WABCO relay emergency valve |
| Brake Chambers | Type 30/30 on rear two axles; Type 30 on front axle |
| Electrical System | 24V lighting system with modular wiring harness; 7-pin ISO socket at the front support frame; complies with Chinese Standard GB/T 1185 |
| Twist Locks | 12 units, ISO standard compliant |
| Spare Tire Carrier | Two sets per trailer |
| Spare Tire | 1 unit |
| Side Guards | Standard |
| Toolbox | 1 unit, 1 meter long |
| Lights and Reflectors | Tail lights, rear reflectors, turn signals, side reflectors, fog lights, license plate light |
| Painting | Two-component paint |
Why Choose Us?
BENCHI 3 axle flatbed semi trailers are exported more than 150 units annually, offering excellent quality and competitive prices. They have become one of the most popular semi trailer choices among African customers.
With 20 years of manufacturing experience and 7 semi trailer technology patents, BENCHI has achieved a high customer repurchase rate of up to 60%.
Our factory is equipped with advanced production equipment and standardized manufacturing processes, operated by a professional team to ensure reliable product quality.
We provide comprehensive pre-sales and after-sales services as well as professional technical support. No matter what questions or product issues you encounter, our team will provide effective solutions.
As an experienced semi trailer manufacturer, BENCHI provides competitive prices and high-quality products, allowing customers to purchase with confidence without worrying about quality issues.
