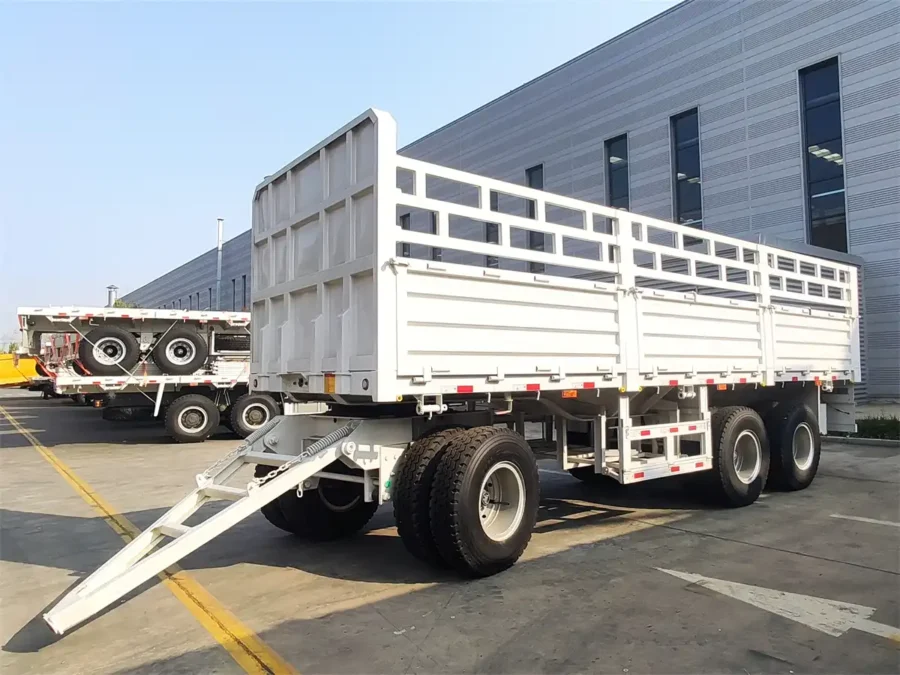

3 Axle Cargo Trailer for Sale
3-axle cargo trailer utilize a turntable steering system and steerable axles. The articulated drawbar trailer is capable of making precise turns in tight spaces, making it suitable for urban roads and congested operating environments.
Overall Dimension: 8900mm×2550mm×3150mm
Axle Brand: 2×12T BPW Brand
Traction Pin: 50# Events
Outrigger: 28T Plus
Articulated drawbar trailers are precision engineered trailers that increase flexibility and maneuverability through the use of articulation and steerable axles. Articulated drawbar trailers have a higher steering capacity than traditional rigid drawbar trailers and are suitable for transportation tasks requiring complex maneuvers and smaller turning radii.
Product Details
3 Axle Cargo Trailer for Sale
3 Axle Cargo Trailer for Sale
3 Axle Cargo Trailer for Sale
3 Axle Cargo Trailer for Sale
3 Axle Cargo Trailer for Sale
3 Axle Cargo Trailer for Sale
Structure and Features
Steerable Shafts
- Quantity: Typically has two or more steerable axles.
- Function: These steerable axles allow the trailer to maneuver more easily around corners, which reduces tire wear and increases transportation efficiency.
Turntable Steering
- Turntable Steering: The turntable is mounted on the front of the trailer and connects the tow bar to the frame, allowing the trailer to rotate with the turntable at the center.
- King Pin: The center hitch pin, the heart of the turntable, provides a pivot point that allows the trailer to rotate freely at various angles.
Flexibility and Maneuverability
- Superior steering ability: Thanks to the turntable steering system and steerable axle design, the articulated tow bar trailer is able to turn easily in tight spaces, making it ideal for urban distribution, warehouse operations, and other scenarios that require a high degree of maneuverability.
- Reduced Tire Wear: The steerable axle design effectively reduces tire skidding and wear, extending tire life.
Product Specification
| 3 Axle Cargo Trailer | ||
|---|---|---|
| Model Number | 3 Axle Cargo Trailer | |
| Overall Dimension | 8900mm×2550mm×3150mm | |
| Cargo Body | 7500mm×2500mm×1400mm | |
| Axle Brand | 2×12T BPW Brand | |
| Brake | WABCO Brake System | |
| Saddle Height | Top 16mm, Middle 10mm, Bottom 20mm | |
| 14# Channel Steel | ||
| Upright | 18mm Integrated Bending Piece | |
| Axle | 3 Axle, One Front Steering Axle, Two Rear Axles | |
| Suspension System | Thickened Mechanical Suspension | |
| Tyre | Factory Supplied 12.00R20, 12 Tires | |
| Steel Ring | Model 8.5 (13 Pieces) | |
| Steel Plates | Thickened 10 Pieces ×13 Thick ×90 Wide | |
| Spare Tire Carrier | 1 Enhanced Type | |
| Outrigger | 28T Plus | |
| Traction Pin | 50# Events | |
| Toolbox | One | |
| Brake System | WABCO | |
| Circuit System | 24V, Route 7 | |
| Coating | The Whole Vehicle Is Sandblasted, Spraying Anti-Rust Primer, Spraying Polyurethane Paint | |
| Lamps and Lanterns | Fully Equipped Luminaire | |
| Lock | Twelve Locks | |
| Fuel Tank | Spare Fuel Tank 600L1 | |
