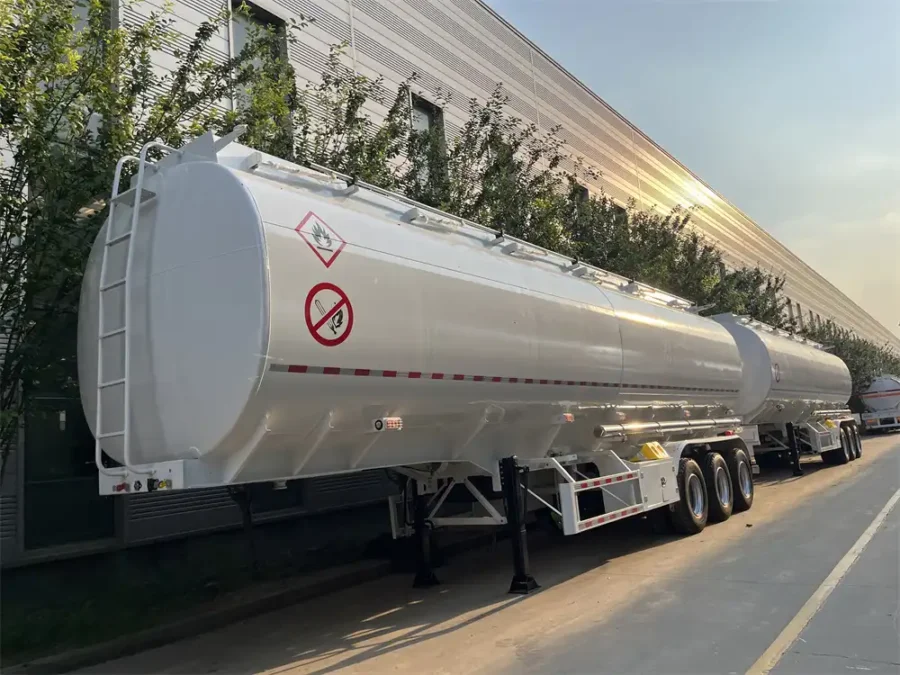

3 Axle Aluminum Tanker Trailer

Africa’s fuel-logistics corridors demand hardware that shrugs off brutal heat, salt air, and endless kilometres of corrugation. Our 3 Axle Aluminum Tanker Trailer answers that brief in three words: Safety, Efficiency, Customization.

3 Axle Aluminum Tanker Trailer

3 Axle Aluminum Tanker Trailer

3 Axle Aluminum Tanker Trailer

The 3 Axle Aluminum Tanker Trailer is purpose-engineered for bulk petroleum, aviation fuel, and light chemicals on long-haul routes linking refineries, coastal depots, and inland retail networks. By combining a low tare mass with multi-compartment flexibility, the 3 Axle Aluminum Tanker Trailer cuts empty-run fuel use by up to 8 % and lets fleet owners adapt a single rig to multiple grades in one trip.

• Tank shell: 6 mm 5454-H32 aluminum alloy, inside and out TIG-welded, then shot-peened and anodized for corrosion resistance that outlasts carbon-steel by 5-10.
• Volume & geometry: 42 000 L elliptical shell with three independent compartments (18 k L / 14 k L / 10 k L) and full-depth perforated baffles every 1 300 mm to tame surge on Kenya’s escarpment descents.
• Chassis: Integrated aluminum girders laser-welded to T700 high-strength steel king-pin plate; FEA-optimised cross-members reduce frame weight by 18 % without sacrificing torsional stiffness.

• Tank capacity: 42 m³ (3 compartments)
• Max payload: 35 t @ 1.0 kg/L density
• Design / Working pressure: 0.4 MPa / 0.25 MPa
• Dimensions (L×W×H): 11,900 × 2,500 × 3,650 mm
• Wheelbase: 7 600 mm
• Axles / Rated load: 3 axles
• Tires: 12R22.5 18-PR tubeless radials
• Suspension: Mechanical leaf or optional air-ride
• Brakes: Dual-line ABS + EBS ready, 30/30 spring chambers

1. Low tare, high revenue. The alloy shell trims 1.5-2 t versus steel, freeing room for an extra 1 900 L of diesel per trip and improving fleet mpg by 5-8 %.
2. Corrosion-proof longevity. Anodised inner walls plus phenolic epoxy lining shrug off sulfur and bio-fuel blends, extending shell life by a.
3. Rapid, spill-free unloading. API bottom-loading adapters, Kamlok quick couplings, and EMCO Wheaton optic probes drain a full load in under 25 min while guarding against overfill.
4. Built-to-order options. Add steam-coil heating for palm-oil, fire-isolation bulkheads for avgas, or a stainless inner barrel for corrosive additives—each option bolts straight onto the base 3 Axle Aluminum Tanker Trailer platform.
