3 Axle 8-Car Carrier Semi Trailer
Overall Dimension: 17000 × 2550+(250+250) mm × H
Tare Weight: 16.5 Tons
Payload Capacity: 60 Tons
Extendable Length: 6 Meters
Extension Type: Double Beam Extendable Structure
Main Beam (Outer): Top 14mm / Middle 10+10mm / Bottom 14mm
Main Beam (Inner): Top 14mm / Middle 10+10mm / Bottom 16mm
Suspension System: Yahua Air Suspension
Lift Axle Function: 1st, 2nd and 6th Axle Liftable
Axle Brand: FUWA Axles
Number of Axles: 6 Axles
Tire Brand: Giti Tires
Tire Specification: 245/70R19.5
The 3 Axle 8-Car Carrier Semi Trailer is a professional vehicle transportation solution specifically designed for efficiently transporting passenger cars, SUVs, pickup trucks, and light commercial vehicles. Widely used by automobile manufacturers, vehicle exporters, dealerships, logistics companies, and fleet operators, it provides a cost-effective and reliable method for moving multiple vehicles in a single trip. The trailer features a double-deck loading structure capable of carrying up to 8 vehicles while maximizing transportation efficiency. Equipped with fully adjustable upright columns and a quick-connect hydraulic system, it offers flexible loading configurations for different vehicle sizes and significantly reduces loading and unloading time. The reinforced high-strength main beam structure, durable mechanical suspension, and heavy-duty 13-ton axles ensure excellent stability, safety, and long service life even under demanding road conditions. Specifically engineered for the African market, this car carrier trailer delivers outstanding durability, low maintenance costs, and high operational efficiency for long-distance vehicle transportation.

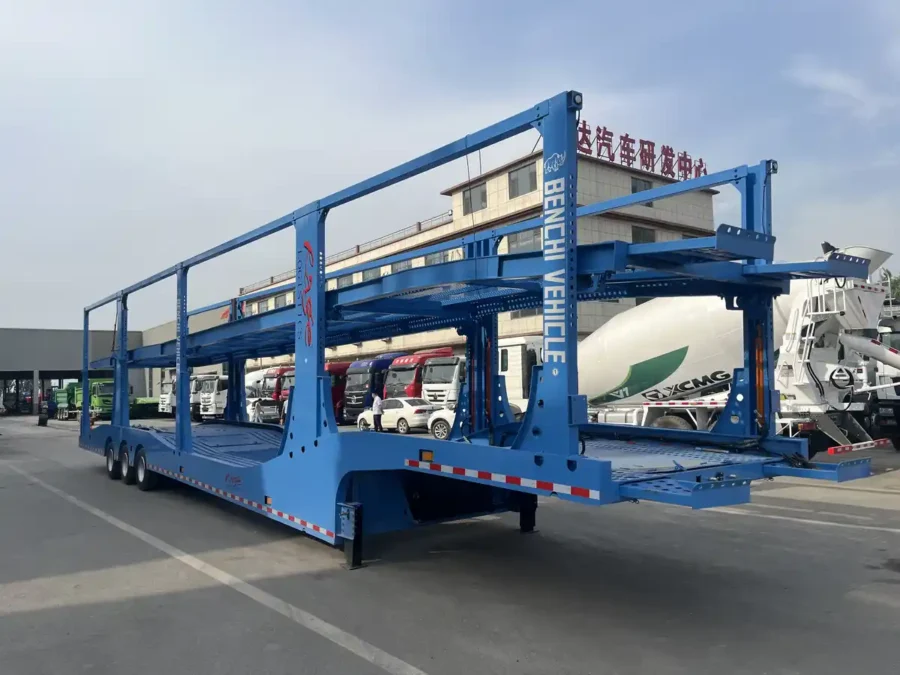

Detailed images of the 3 Axle 8-Car Carrier Semi Trailer
The 3 Axle 8-Car Carrier Semi Trailer Specification
| Specification | Details |
|---|---|
| Trailer Model | 3 Axle 8-Car Carrier Semi Trailer |
| Target Market | African Market |
| Vehicle Capacity | 8 Vehicles |
| Column Type | Fully Adjustable Upright Columns |
| Hydraulic System | Quick-Connect Hydraulic Oil Pipes |
| Main Beam Structure | Top 12mm / Middle 8mm / Bottom 14mm |
| King Pin | 90# Bolted King Pin |
| Vehicle Passageway | 3mm Perforated Steel Plate |
| Columns | 5 Columns Per Side |
| Suspension Type | Mechanical Suspension |
| Leaf Spring | 90mm × 16mm × 10 Leaves (Compressed 4) |
| Axle Brand | Benchi 13T Drum Brake Axles |
| Number of Axles | 3 Axles |
| Tire Specification | 245/70R17.5 |
The 3 Axle 8-Car Carrier Semi Trailer Application
1. Automobile dealership distribution: Designed for transporting up to 8 passenger vehicles from manufacturers and ports to dealerships, ensuring efficient and cost-effective vehicle delivery.
2. Cross-border vehicle export transportation: Ideal for exporting new and used vehicles across Africa, enabling safe long-distance transportation while maximizing loading efficiency.
3. Fleet relocation and logistics services: Suitable for moving rental fleets, corporate vehicles, and commercial vehicle inventories between cities, warehouses, and logistics centers.
4. Port and inland vehicle transfer: Efficiently transports vehicles from seaports, bonded warehouses, and distribution hubs to inland destinations, reducing transportation costs per unit.
5. Automotive trading and auction transportation: Perfect for vehicle traders, auction companies, and used-car exporters requiring reliable transportation of multiple vehicles in a single trip.
Advantages
1. High-capacity 8-vehicle transport: Optimized double-deck design accommodates up to 8 passenger vehicles, significantly improving transportation efficiency and profitability.
2. Fully adjustable upright columns: Equipped with fully adjustable columns that provide flexible loading configurations for different vehicle sizes, including sedans, SUVs, and pickup trucks.
3. Quick-connect hydraulic system: Features quick-connect hydraulic oil pipes for faster setup, easier maintenance, and more efficient loading and unloading operations.
4. Heavy-duty reinforced main beam: Constructed with a high-strength main beam structure featuring 12mm upper flange, 8mm web plate, and 14mm lower flange for superior durability and load-bearing performance.
5. Reliable running gear: Equipped with Benchi 13-ton drum brake axles, mechanical suspension, and 245/70R17.5 tires, delivering dependable performance on long-distance and challenging road conditions.
Why choose benchi 3 Axle 8-Car Carrier Semi Trailer?
1. Specialist in car carrier trailer manufacturing: BENCHI has extensive experience in designing and producing vehicle transport trailers tailored for international markets, especially Africa and the Middle East.
2. Customized solutions for local markets: Trailer configurations can be customized according to transportation regulations, vehicle types, road conditions, and customer requirements.
3. Premium materials and proven components: We use high-strength steel, durable hydraulic systems, and reliable axle assemblies to ensure long-term operational stability.
4. Strict quality control standards: Every trailer undergoes comprehensive inspection and testing procedures before delivery, ensuring excellent safety and structural integrity.
5. Comprehensive after-sales support: BENCHI provides technical guidance, spare parts assistance, and responsive customer service to help customers achieve maximum operational efficiency.
