2 Axle 8-Car Carrier Semi Trailer
Overall Dimension: 17100 × 2550 × 3980 mm
Net Weight: 10200 kg
Main Beam Structure: Top Plate 8mm / Bottom Plate 10mm / Web Plate 5mm
Kingpin: 90/50# Bolted Type Kingpin
Axle Brand: BPW Axles
Number of Axles: 2 Axles
Tire Brand: Linglong Tires
Tire Specification: 235/70R17.5 Tires (9 pcs)
Relay Valve: WABCO Relay Valve
The 2 Axle 8 Unit Car Carrier Trailer is a professional vehicle transportation solution designed for efficient and safe multi-vehicle logistics. With a loading capacity of 8 vehicles, this double-deck car carrier trailer is engineered for automobile transportation companies, vehicle distributors, and logistics fleets requiring high transport efficiency. Featuring a hydraulic sliding rear extension system for both upper and lower decks, the trailer provides flexible loading space adjustment for different vehicle sizes. Equipped with BPW axles, WABCO relay valves, reinforced main beams, and multiple vehicle securing systems, this car carrier trailer ensures reliable performance, safety, and durability during long-distance vehicle transportation.

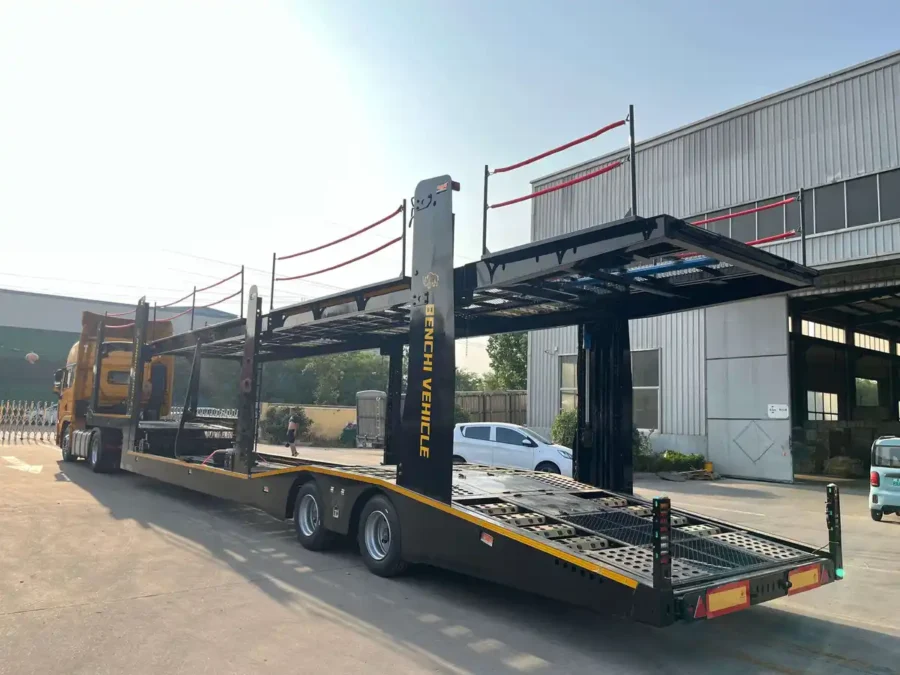

Detailed images of the 3 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
2 Axle 8-Car Carrier Semi Trailer
The 3 Axle 8-Car Carrier Semi Trailer Specification
| Specification | Details |
|---|---|
| Trailer Model | 2 Axle 8 Unit Car Carrier Trailer |
| Overall Dimension | 17100 × 2550 × 3980 mm |
| Net Weight | 10200 kg |
| Main Beam Structure | Top Plate 8mm / Bottom Plate 10mm / Web Plate 5mm |
| Kingpin | 90/50# Bolted Type Kingpin |
| Axle Brand | BPW Axles |
| Number of Axles | 2 Axles |
| Tire Brand | Linglong Tires |
| Tire Specification | 235/70R17.5 Tires (9 pcs) |
| Relay Valve | WABCO Relay Valve |
| Wheel Chocks | 80 Sets of Wheel Positioning Devices |
| Binding Straps | 16 Safety Straps |
| Hydraulic System | Complete Hydraulic Power Unit |
| Rear Extension System | Hydraulic Sliding Rear Extension for Upper and Lower Decks |
| Loading Capacity | 8 Vehicles |
The 2 Axle 8-Car Carrier Semi Trailer Application
1. 8-vehicle transport capacity: The double-deck structure allows transportation of up to 8 vehicles in one trip, significantly improving logistics efficiency.
2. Hydraulic rear extension system: Upper and lower deck hydraulic sliding extensions provide flexible adjustment for different vehicle lengths and improve loading convenience.
3. Strong structural design: The reinforced main beam uses 8mm top plate, 10mm bottom plate, and 5mm web plate to ensure excellent strength and durability.
4. Reliable running components: Equipped with BPW axles and Linglong 235/70R17.5 tires, providing stable operation and long service life.
5. Advanced safety protection: WABCO relay valve, 80 sets of wheel positioning devices, and 16 safety straps ensure secure vehicle fixation during transportation.
6. Efficient hydraulic operation: The integrated hydraulic power unit simplifies deck adjustment and improves loading efficiency.
7. Lightweight transportation solution: With a net weight of only 10,200kg, the trailer improves payload efficiency and reduces operating costs.
8. Flexible vehicle compatibility: The adjustable upper and lower decks allow transportation of various passenger vehicles and commercial cars.
Advantages
1. 8-vehicle transport capacity: The double-deck structure allows transportation of up to 8 vehicles in one trip, significantly improving logistics efficiency.
2. Hydraulic rear extension system: Upper and lower deck hydraulic sliding extensions provide flexible adjustment for different vehicle lengths and improve loading convenience.
3. Strong structural design: The reinforced main beam uses 8mm top plate, 10mm bottom plate, and 5mm web plate to ensure excellent strength and durability.
4. Reliable running components: Equipped with BPW axles and Linglong 235/70R17.5 tires, providing stable operation and long service life.
5. Advanced safety protection: WABCO relay valve, 80 sets of wheel positioning devices, and 16 safety straps ensure secure vehicle fixation during transportation.
6. Efficient hydraulic operation: The integrated hydraulic power unit simplifies deck adjustment and improves loading efficiency.
7. Lightweight transportation solution: With a net weight of only 10,200kg, the trailer improves payload efficiency and reduces operating costs.
8. Flexible vehicle compatibility: The adjustable upper and lower decks allow transportation of various passenger vehicles and commercial cars.
Why choose bench2 Axle 8-Car Carrier Semi Trailer?
1. Professional car carrier trailer manufacturer: BENCHI specializes in manufacturing vehicle transport trailers, low bed trailers, container trailers, and customized logistics equipment.
2. Safety-focused engineering design: Every car carrier trailer is developed with reliable vehicle securing systems, reinforced structures, and stable running performance.
3. Premium component selection: BENCHI uses trusted components including BPW axles, WABCO braking systems, and high-quality hydraulic systems to ensure long-term reliability.
4. Customized transportation solutions: Trailer dimensions, deck configurations, hydraulic systems, and vehicle loading capacity can be customized according to customer requirements.
5. Global export experience: BENCHI provides professional technical support, spare parts supply, and after-sales service for automotive logistics customers worldwide.
